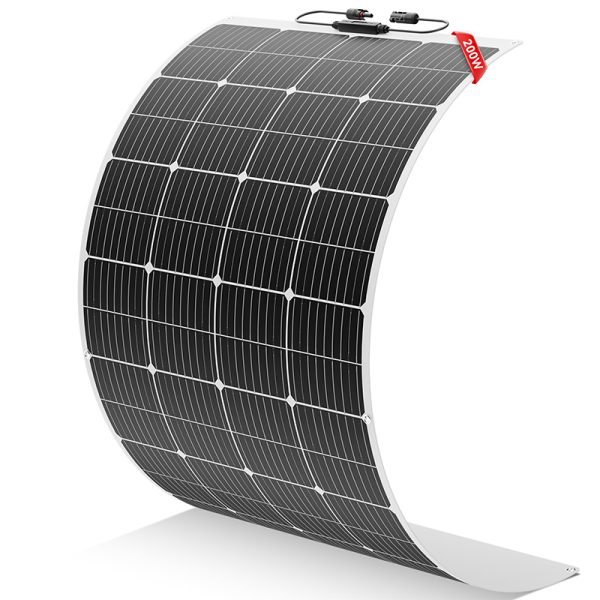

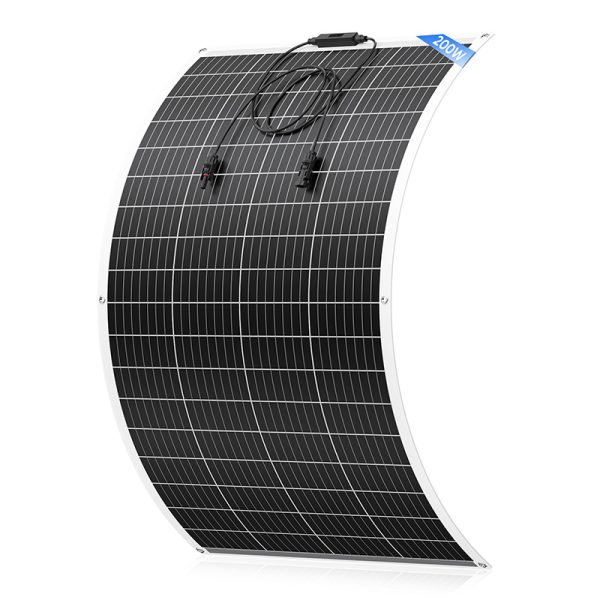

200 Watt Flexible Solar Panel
Upgrade your off-grid system with this ultra-thin 200 Watt Flexible Solar Panel, featuring an advanced bendable design, marine-grade waterproofing, and lightweight monocrystalline cells that perfectly contour to your RV roof or boat deck without adding weight or drag.
● A+ grade solar cells with a conversion rate of up to 23%.
● Lightweight and highly resistant to scratches and weathering due to the use of advanced polymer materials.
● Extremely Flexible. Easy to install and versatile to seamlessly integrate with all shapes and types of roofs.
Ultra-Light, High-Efficiency, Built to Bend
Experience higher levels of solar efficiency, with a conversion efficiency exceeding 23%. It uses fast-charging monocrystalline silicon cells, and features a lightweight, ultra-flexible thin panel that can be bent. It is IP68 waterproof, heat-resistant, and scratch-resistant, making it suitable for outdoor adventures.
Lightning-Fast Setup Anywhere, Curved or Flat.
Whether it’s a curved residential awning, a streamlined RV, or a rugged marine hull, experience a lightning-fast setup that turns a complex project into a simple task.
Empowering Your Home and Journeys
From residential roofs and RV road trips to sailing the open seas, our multi-purpose solar panels empower every scenario—keeping your home and journeys endlessly powered
SPECIFICATIONS
Module Performance
| System Configuration: | Off-Grid |
| Solar Technology: | Monocrystalline |
| Power Source: | Solar |
| Max Power (Pmax): | 200W |
| Voltage at Pmax (Vmp): | 18V |
| Current at Pmax (Imp): | 11.11A |
| System Voltage: | 12V |
| Current Type: | DC |
| Maximum Input Voltage: | 11–20V |
| Charging Mode: | PWM / MPPT |
Mechanical Specifications
| Dimensions: | 58.27 × 26.77 in (1480 × 700 mm) |
| Material: | Monocrystalline Silicon |
| Frame: | No Frame (Flexible Design) |
| Connector Type: | MC4 Compatible |
| Output Cables: | 4 mm² (90 cm) |
| Color: | Black |
| Flexibility: | Flexible |
| Connector Configuration: | FFM, MMF |
Operating Parameters
| Operating Temperature: | -20°C |
| Temperature Range: | -20°C to +60°C |
| Recommended Environment: | Outdoor |
| Resistance Properties: | Abrasion, Acid, Chemical, Corrosion, Dust, Weather Resistant |
Certifications & Protection
| Certification: | RoHS, CE, TUV Certification, EL Test |
| IP Rating: | IP68 |
Compatibility & Applications
| Compatible Devices: | Solar Panel, Solar Regulator, Solar Battery Charger |
| Apply To: | Controller MC-4 |
| Applications: | Agriculture, Automotive, RV, Camping, Electronics, Marine, Home/Garden, Aquaculture, Backup Power, Commercial, Irrigation, Municipal, Pool, Shed |
Frequently Asked Questions
What is a flexible solar panel and how is it different from a rigid one?
Flexible solar panels are built with thin, lightweight materials that allow them to bend up to 30 degrees. Unlike rigid panels, they’re ideal for curved surfaces such as RV roofs, boats, or trailers.
Can I walk on the flexible solar panel?
No. Although flexible panels are designed to bend, they are not made to withstand heavy pressure. Walking or placing heavy objects on them may cause damage to the cells.
How do I install a 200W flexible solar panel?
These panels can be installed using silicone adhesive, Velcro, or mounting grommets—no heavy aluminum brackets required. Always ensure a clean, dry, and flat surface for secure attachment.
Is the flexible panel waterproof?
Yes. Our 200W Flexible Solar Panel is IP67-rated, meaning it is fully waterproof and suitable for marine and outdoor environments. However, avoid long-term submersion in water.
What type of charge controller should I use with this panel?
We recommend using an MPPT charge controller for maximum efficiency, especially when charging LiFePO4 or AGM batteries. A 10A or higher-rated controller works well for a single 100W panel.
What is the expected lifespan of a flexible solar panel?
Flexible panels generally last 5–10 years, depending on installation and environmental conditions. Proper maintenance and avoiding sharp bending or heavy impact can extend lifespan.
Does shading affect performance?
Yes. Like all solar panels, shading can significantly reduce power output. Try to mount the panel in a location with maximum sunlight exposure.
Can I use this panel to charge a 12V battery directly?
You should always connect the solar panel through a charge controller to safely regulate the voltage and prevent overcharging your battery.
