6000W Hybrid Solar Inverter
The 6000W Hybrid Solar Inverter is a versatile energy management solution that seamlessly integrates solar power, battery storage, and grid electricity. Designed for residential, commercial, and off-grid applications, it delivers stable power output, intelligent energy control, and high conversion efficiency to maximize energy independence and reduce electricity costs.
● 6000W pure sine wave output for stable and reliable power supply
● Compatible with lithium-ion and lead-acid batteries

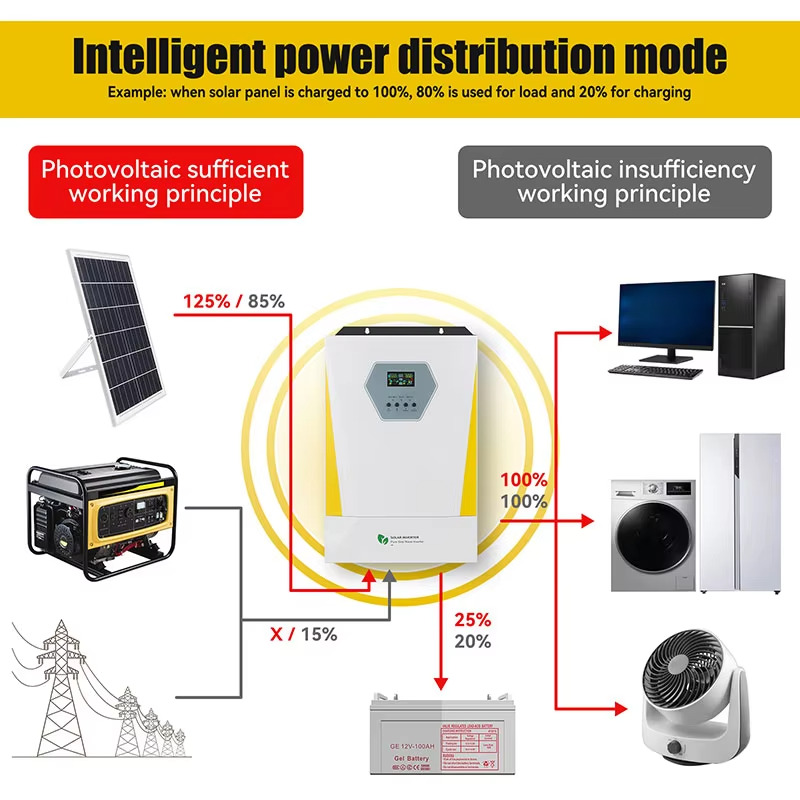

● Automatic switching between solar, battery, and grid power sources
● Built-in protection against overload, short circuit, over-temperature, and over-voltage
● LCD display for real-time monitoring of system performance
● Suitable for homes, cabins, offices, telecom systems, and backup power application
SPECIFICATIONS
| Model | 3024MH | 6248MH |
|---|---|---|
| Input Sources | L+N+PE | L+N+PE |
| Rated Input Voltage | 220/230/240VAC | 220/230/240VAC |
| Voltage Range | 90-280VAC±3V (APL) / 170-280VAC±3V (UPS) | 90-280VAC±3V (APL) / 170-280VAC±3V (UPS) |
| Frequency | 50Hz/60Hz (Auto Adaptive) | 50Hz/60Hz (Auto Adaptive) |
| Rated Capacity | 3000W | 6200W |
| Output Voltage | 220/230/240VAC±5% | 220/230/240VAC±5% |
| Output Frequency | 50/60Hz±0.1% | 50/60Hz±0.1% |
| Waveform | Pure Sine Wave | Pure Sine Wave |
| Transfer Time | 10ms (UPS), 20ms (APL) | 10ms (UPS), 20ms (APL) |
| Peak Power | 6000VA | 12400VA |
| Over Load Ability | 21s@105%-150% Load 11s@150%-200% Load 400ms@>200% Load | |
| Peak Efficiency (Battery Mode) | >94% | >98% |
| Battery Voltage | 24Vdc | 48Vdc |
| Constant Charging Voltage | 28.2Vdc | 56.4Vdc |
| Float Charging Voltage | 27Vdc | 54Vdc |
| PV Charging Mode | MPPT | MPPT |
| Max PV Input Power | 4200W | 6200W |
| MPPT Tracking Range | 30-115Vdc | 90-500Vdc |
| Best Voltage | 30-115Vdc | 300-400Vdc |
| Max PV Input Voltage | 500Vdc | 500Vdc |
| Max PV Charging Current | 100A | 100A |
| Max AC Charging Current | 60A | 80A |
| Max Total Charging Current | 100A | 120A |
| Display | LCD Display | LCD Display |
| Interface | RS232, Lithium Battery BMS Communication Card, WiFi Card, Dry Contact | RS232, Lithium Battery BMS Communication Card, WiFi Card, Dry Contact |
| Parallel Connect | With Parallel | With Parallel |
| Operating Temperature | -10-50°C | -10-50°C |
| Humidity | 20%-95% (Non-condensing) | 20%-95% (Non-condensing) |
| Storage Temperature | -15-60°C | -15-60°C |
| Altitude | ≤1000m, Max 4000m | ≤1000m, Max 4000m |
| Noise | ≤50dB | ≤50dB |
