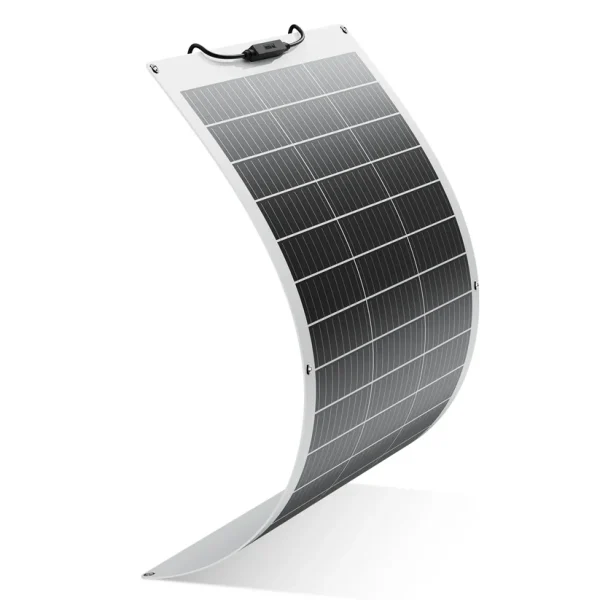

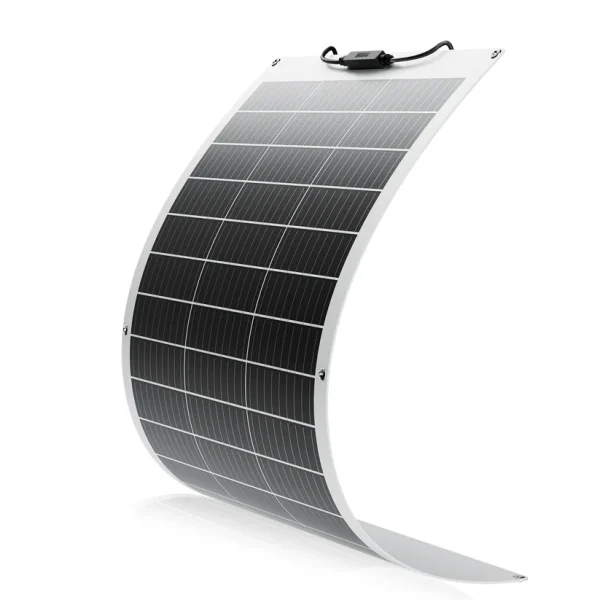

100 Watt Flexible Solar Panel
● A+ grade solar cells with a conversion rate of up to 23%.
● Lightweight and highly resistant to scratches and weathering due to the use of advanced polymer materials.

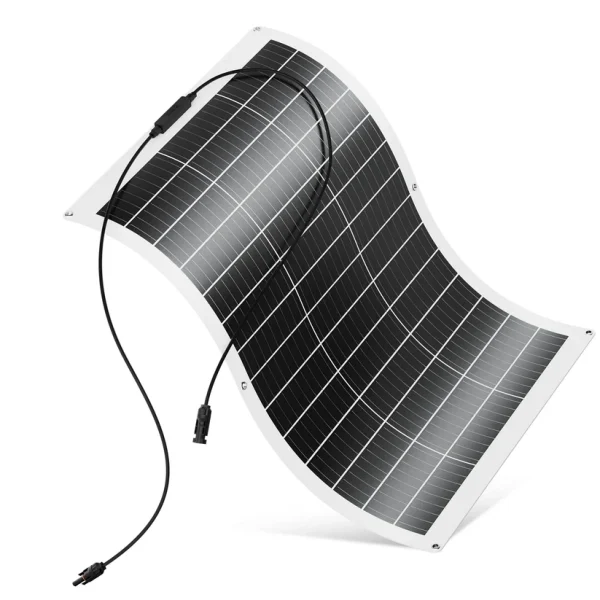

● Extremely Flexible. Easy to install and versatile to seamlessly integrate with all shapes and types of roofs.
Ultra-Light, High-Efficiency, Built to Bend

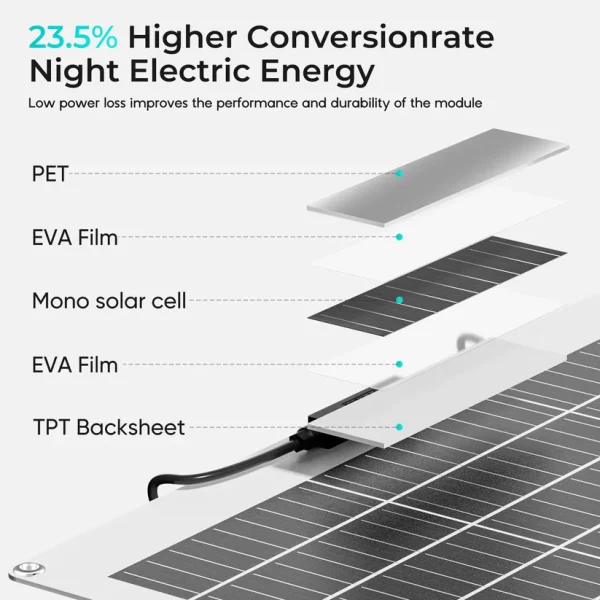

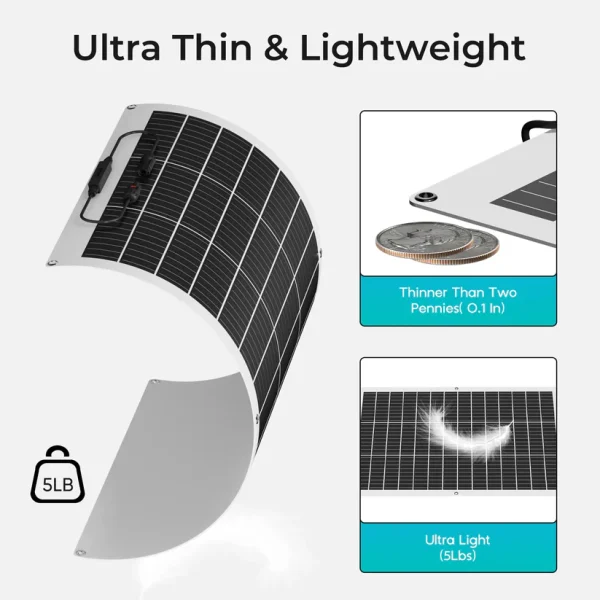

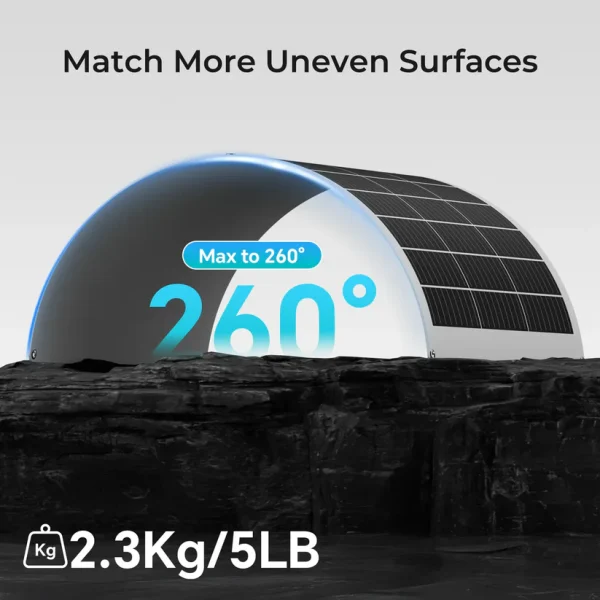

Experience next-level solar efficiency with over 23% conversion efficiency and fast charging monocrystalline cells in a lightweight, ultra-flexible 2mm thin panel that bends up to 248° for curved surfaces, built with IP68 waterproof, heat-resistant, and scratchproof durability for outdoor adventures while supporting a cleaner, greener future with recyclable materials.
SPECIFICATIONS
Module Performance
| System Configuration: | Off-Grid |
| Solar Technology: | Monocrystalline |
| Power Source: | Solar |
| Max Power (Pmax): | 100W |
| Voltage at Pmax (Vmp): | 18.5V |
| Current at Pmax (Imp): | 5.41A |
| System Voltage: | 12V |
| Current Type: | DC |
| Maximum Input Voltage: | 11–20V |
| Charging Mode: | PWM / MPPT |
Mechanical Specifications
| Dimensions: | 36.02 × 24.02 in (915 × 610 mm) |
| Material: | Monocrystalline Silicon |
| Frame: | No Frame (Flexible Design) |

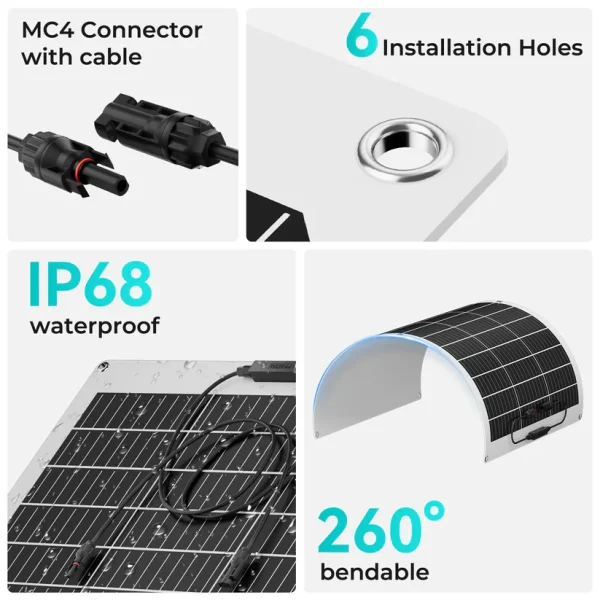

| Connector Type: | MC4 Compatible |
| Output Cables: | 4 mm² (90 cm) |
| Color: | Black |
| Flexibility: | Flexible |
| Connector Configuration: | FFM, MMF |
Operating Parameters
| Operating Temperature: | -20°C |
| Temperature Range: | -20°C to +60°C |
| Recommended Environment: | Outdoor |
| Resistance Properties: | Abrasion, Acid, Chemical, Corrosion, Dust, Weather Resistant |
Certifications & Protection
| Certification: | RoHS, CE, TUV Certification, EL Test |
| IP Rating: | IP67 |
Compatibility & Applications
| Compatible Devices: | Solar Panel, Solar Regulator, Solar Battery Charger |
| Apply To: | Controller MC-4 |

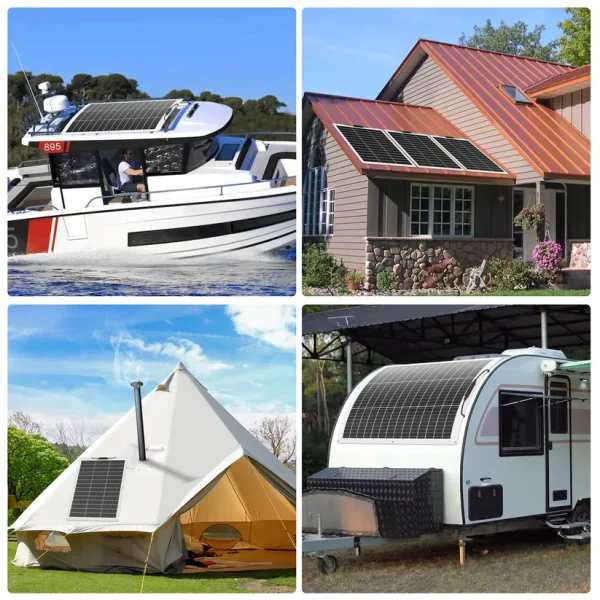

| Applications: | Agriculture, Automotive, RV, Camping, Electronics, Marine, Home/Garden, Aquaculture, Backup Power, Commercial, Irrigation, Municipal, Pool, Shed |
Frequently Asked Questions
What is a flexible solar panel and how is it different from a rigid one?
Flexible solar panels are built with thin, lightweight materials that allow them to bend up to 30 degrees. Unlike rigid panels, they’re ideal for curved surfaces such as RV roofs, boats, or trailers.
Can I walk on the flexible solar panel?
No. Although flexible panels are designed to bend, they are not made to withstand heavy pressure. Walking or placing heavy objects on them may cause damage to the cells.
How do I install a 100W flexible solar panel?
These panels can be installed using silicone adhesive, Velcro, or mounting grommets—no heavy aluminum brackets required. Always ensure a clean, dry, and flat surface for secure attachment.
Is the flexible panel waterproof?
Yes. The EcoBoss 100W Flexible Solar Panel is IP67-rated, meaning it is fully waterproof and suitable for marine and outdoor environments. However, avoid long-term submersion in water.
What type of charge controller should I use with this panel?
We recommend using an MPPT charge controller for maximum efficiency, especially when charging LiFePO4 or AGM batteries. A 10A or higher-rated controller works well for a single 100W panel.
What is the expected lifespan of a flexible solar panel?
Flexible panels generally last 5–10 years, depending on installation and environmental conditions. Proper maintenance and avoiding sharp bending or heavy impact can extend lifespan.
Does shading affect performance?
Yes. Like all solar panels, shading can significantly reduce power output. Try to mount the panel in a location with maximum sunlight exposure.
Can I use this panel to charge a 12V battery directly?
You should always connect the solar panel through a charge controller to safely regulate the voltage and prevent overcharging your battery.
